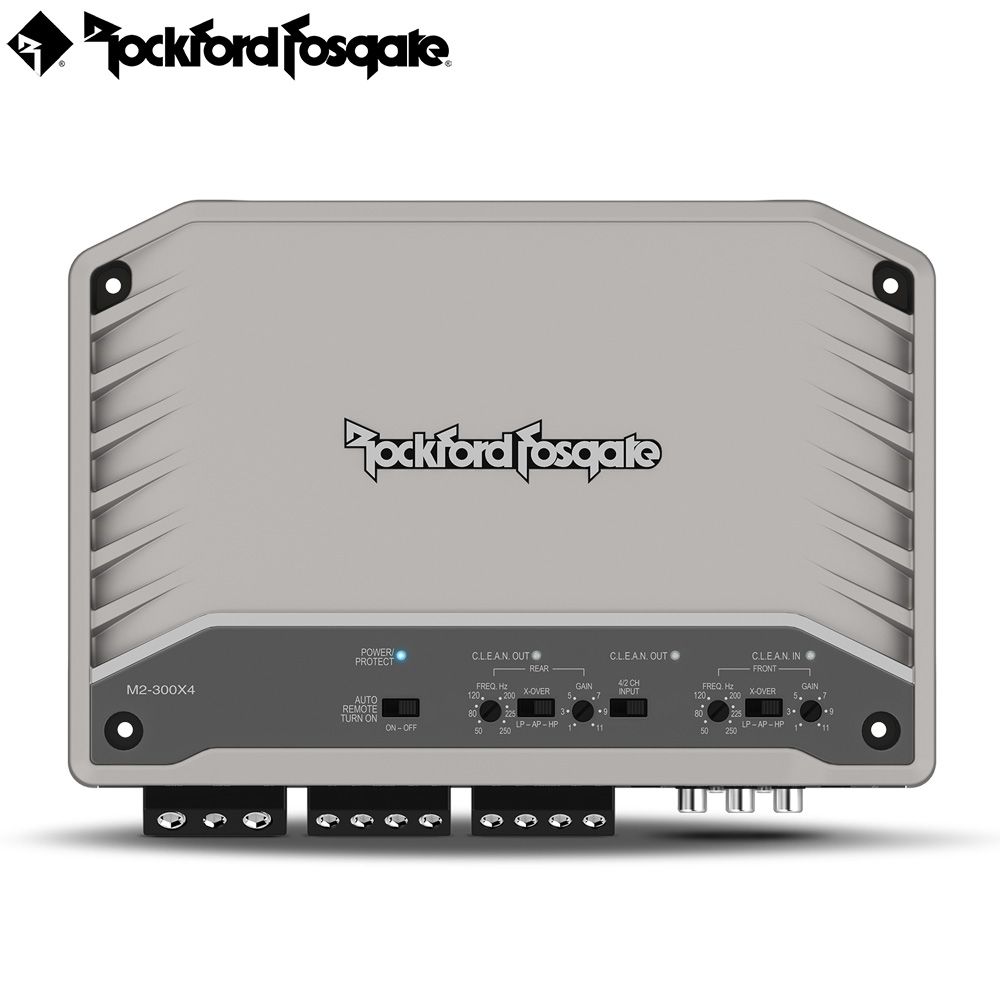

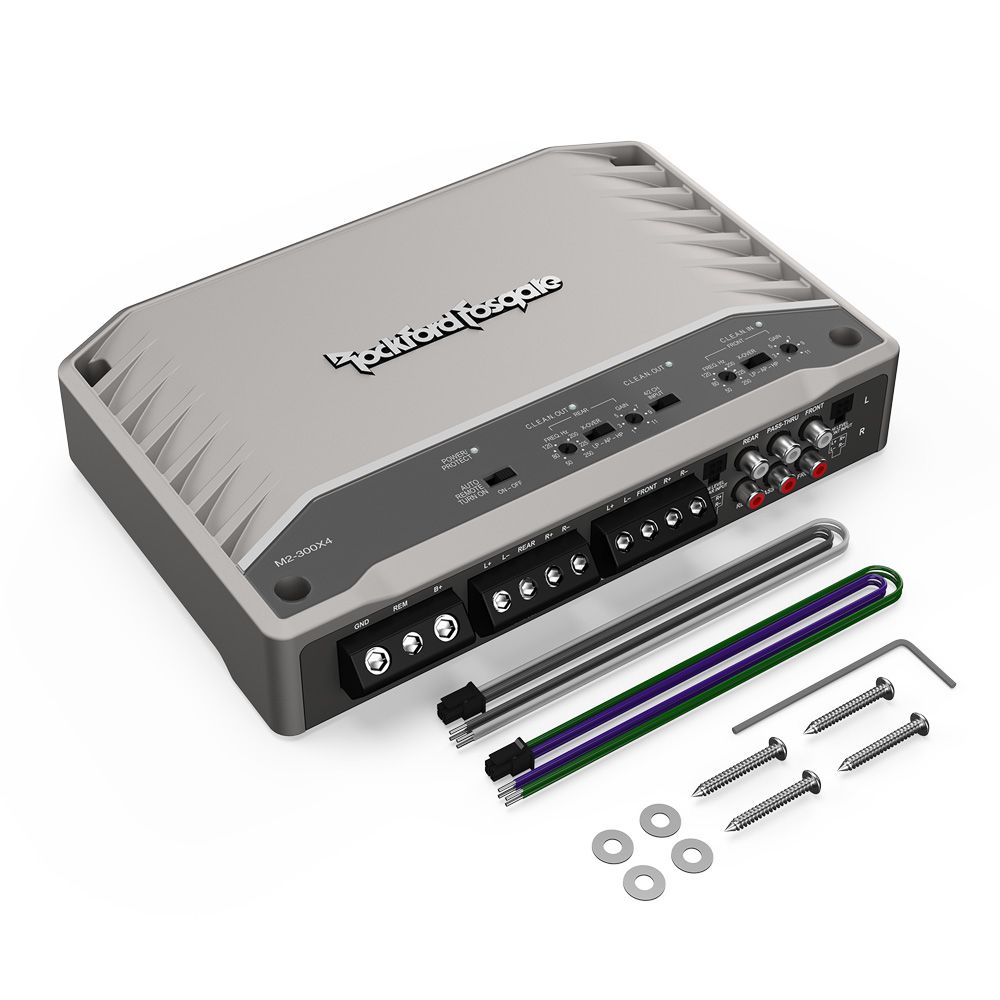

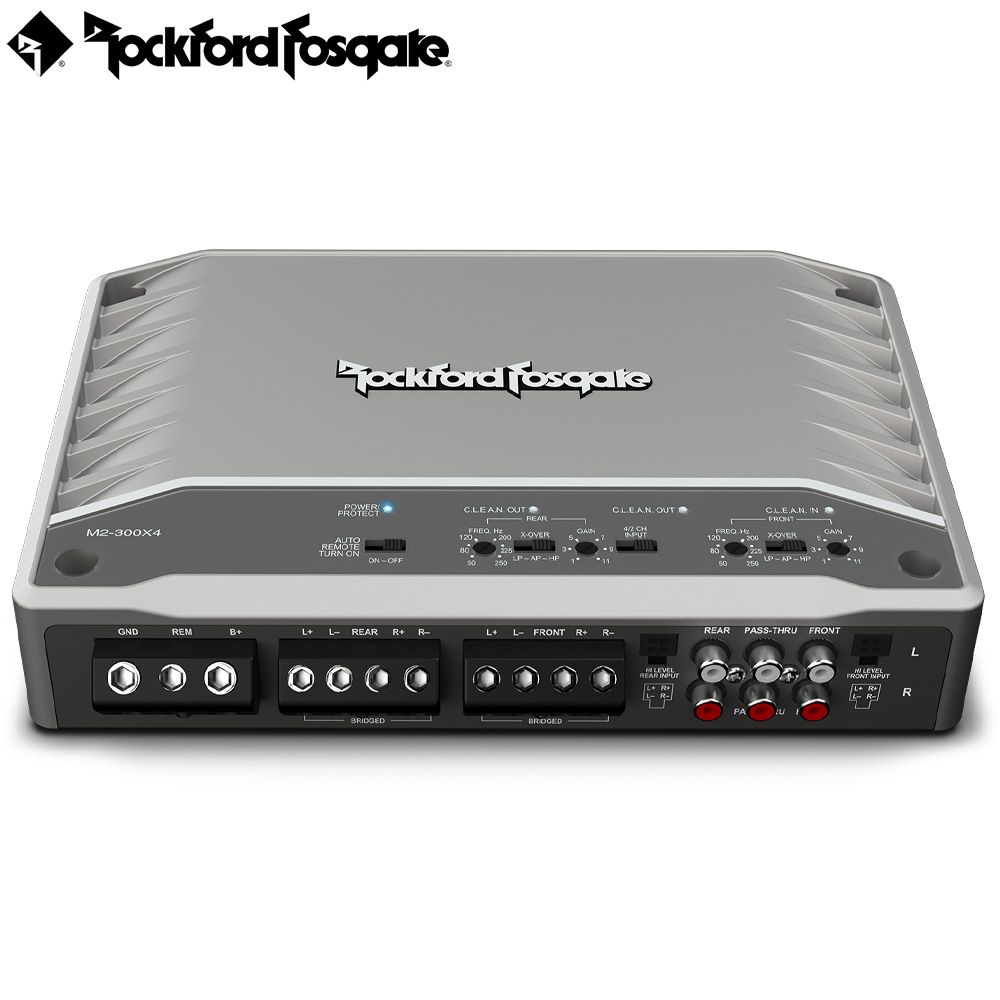

ROCKFORD FOSGATE M2-300X4 (4-Channel Amplifier – 4x300W)
×
Κάνε ΚΛΙΚ στην εικόνα για να την δεις σε μεγαλύτερο μέγεθος
M2 300 Watt 4-Channel Element Ready™ Amplifier
Designed to withstand the elements, the M2-300X4 Element Ready™ amplifier is a 300 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono.
This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system.
The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.
Περιγραφή
Designed to withstand the elements, the M2-300X4 Element Ready™ amplifier is a 300 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono.
This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system.
The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.
FEATURES AT A GLANCE

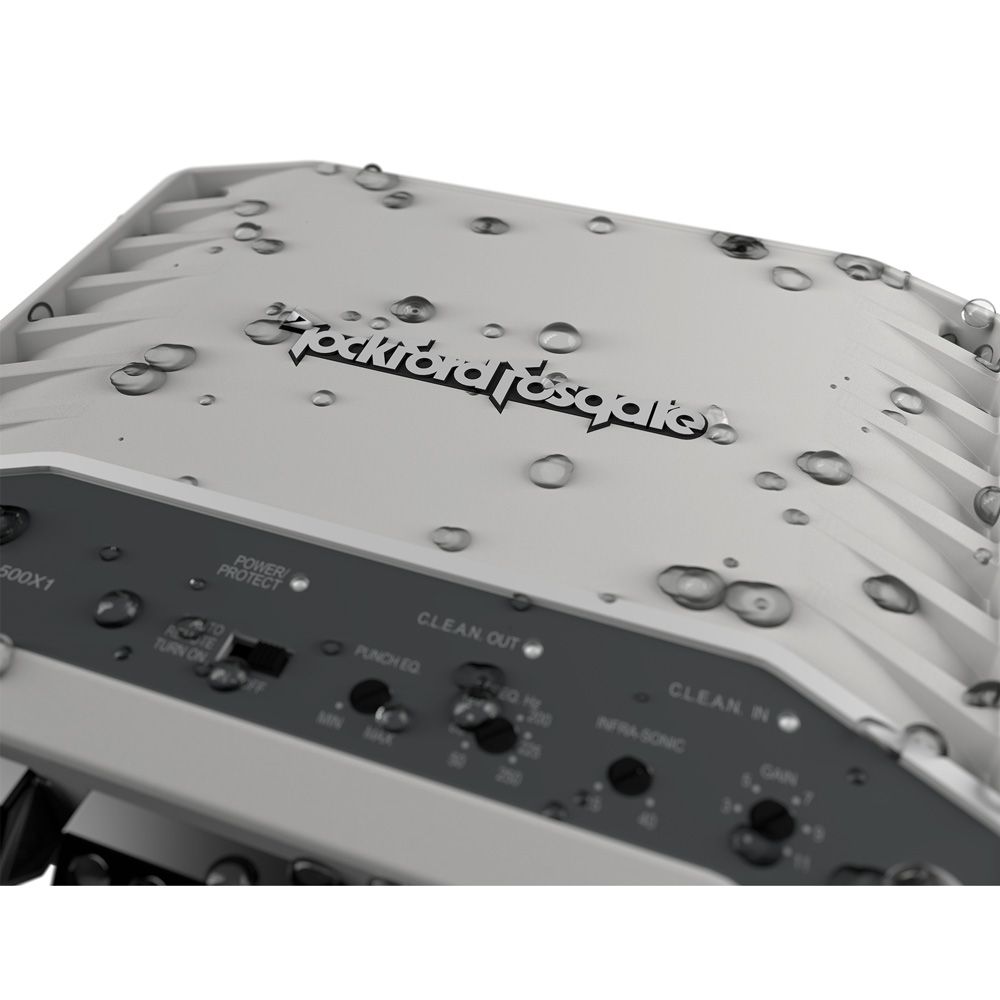

- Element Ready™ design protects against outdoor exposure
- Zinc Nickel-plated Marine grade brass connection terminals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Optimized using AudioGraph PowerCube measurement tool
- UV stable powder coated cast aluminum heatsink
- Conformal coated circuit board protects against dust and water
- Integration with OEM and Aftermarket Radios
- Low Impedance Stability
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

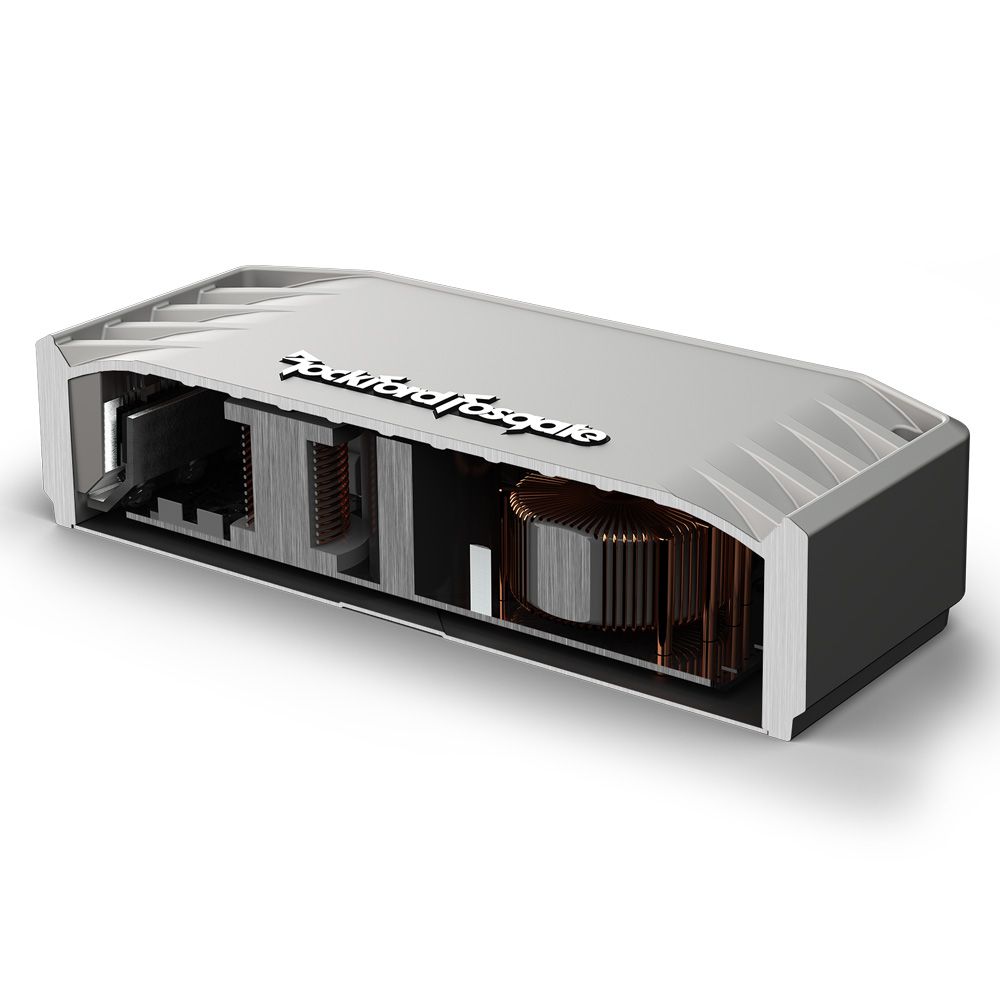

- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Integrated Power and Speaker Terminals
- “Auto-Sense” turn-on with remote out (high level in)
- CEA-2006 Compliant & CE Compliant
- 2/4 channel input switch
- 2-Year Warranty
- RCA pass-thru outputs
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / SPECIFICATIONS
- Number of Channels: 4
- Total Power (Sum of Rated Power): 300 Watts
- Rated Power (RMS Continuous Power): 50 Watts x 4 @ 4Ω, 75 Watts x 4 @ 2Ω, 150 Watts x 2 @ 4Ω Bridged/Mono
- Dynamic Power (PVC/PowerCube®): 70 Watts x 4 @ 4Ω, 115 Watts x 4 @ 2Ω, 230 Watts x 2 @ 4Ω Bridged/Mono
- Bridgeable: Yes
- Frequency Response: 20 Hz – 20 kHz
- Input Sensitivity: Low-Level: 150 mV – 4 V, High-Level: 450 mV – 12 V
- Circuit Topology Class: Class D
- Efficiency (average)
- Total Harmonic Distortion (THD+Noise): 4Ω: <1.0%, 2Ω: <1.0%

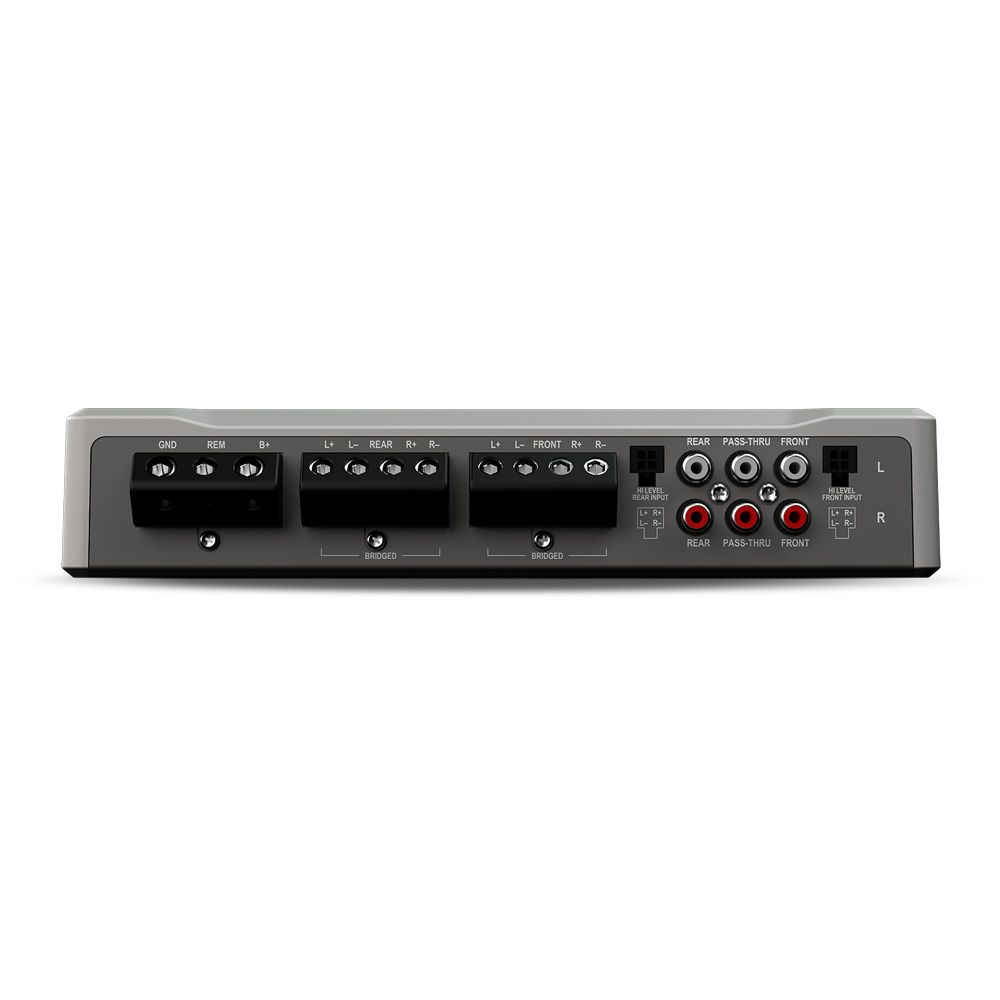

- Signal Input: Front Low-Level: 2 RCA, Front High-Level: 4-Pin Molex, Rear Low-Level: 2 RCA, Rear High-Level: 4-Pin Molex
- Input Switch: 2/4 Input (works for RCA/High-Level inputs)
- Signal OutputLow-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
- Tone Controls: No
- Crossover Controls: Front
- High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- Front Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- Rear High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- Rear Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- All-Pass: Yes
Τεχνικά Χαρακτηριστικά
Designed to withstand the elements, the M2-300X4 Element Ready™ amplifier is a 300 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.FEATURES AT A GLANCE
- Element Ready™ design protects against outdoor exposure
- Zinc Nickel-plated Marine grade brass connection terminals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Optimized using AudioGraph PowerCube measurement tool
- UV stable powder coated cast aluminum heatsink
- Conformal coated circuit board protects against dust and water
- Integration with OEM and Aftermarket Radios
- Low Impedance Stability
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Integrated Power and Speaker Terminals
- “Auto-Sense” turn-on with remote out (high level in)
- CEA-2006 Compliant & CE Compliant
- 2/4 channel input switch
- 2-Year Warranty
- RCA pass-thru outputs
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / SPECIFICATIONS
- Number of Channels: 4
- Total Power (Sum of Rated Power): 300 Watts
- Rated Power (RMS Continuous Power): 50 Watts x 4 @ 4Ω, 75 Watts x 4 @ 2Ω, 150 Watts x 2 @ 4Ω Bridged/Mono
- Dynamic Power (PVC/PowerCube®): 70 Watts x 4 @ 4Ω, 115 Watts x 4 @ 2Ω, 230 Watts x 2 @ 4Ω Bridged/Mono
- Bridgeable: Yes
- Frequency Response: 20 Hz – 20 kHz
- Input Sensitivity: Low-Level: 150 mV – 4 V, High-Level: 450 mV – 12 V
- Circuit Topology Class: Class D
- Efficiency (average)
- Total Harmonic Distortion (THD+Noise): 4Ω: <1.0%, 2Ω: <1.0%
- Signal Input: Front Low-Level: 2 RCA, Front High-Level: 4-Pin Molex, Rear Low-Level: 2 RCA, Rear High-Level: 4-Pin Molex
- Input Switch: 2/4 Input (works for RCA/High-Level inputs)
- Signal OutputLow-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
- Tone Controls: No
- Crossover Controls: Front
- High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- Front Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- Rear High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- Rear Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
- All-Pass: Yes
