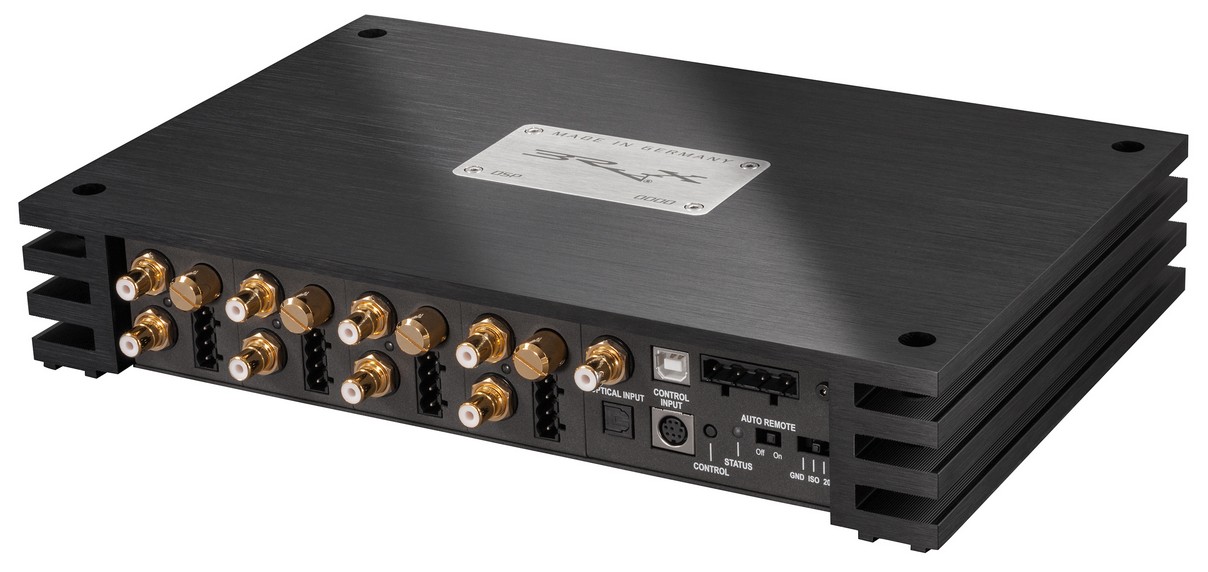

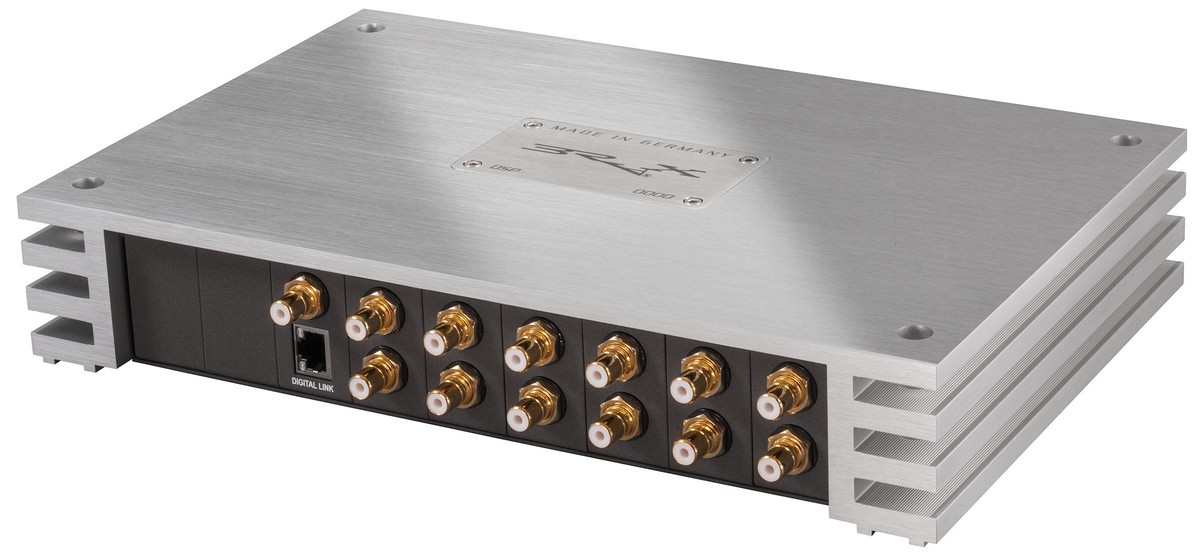

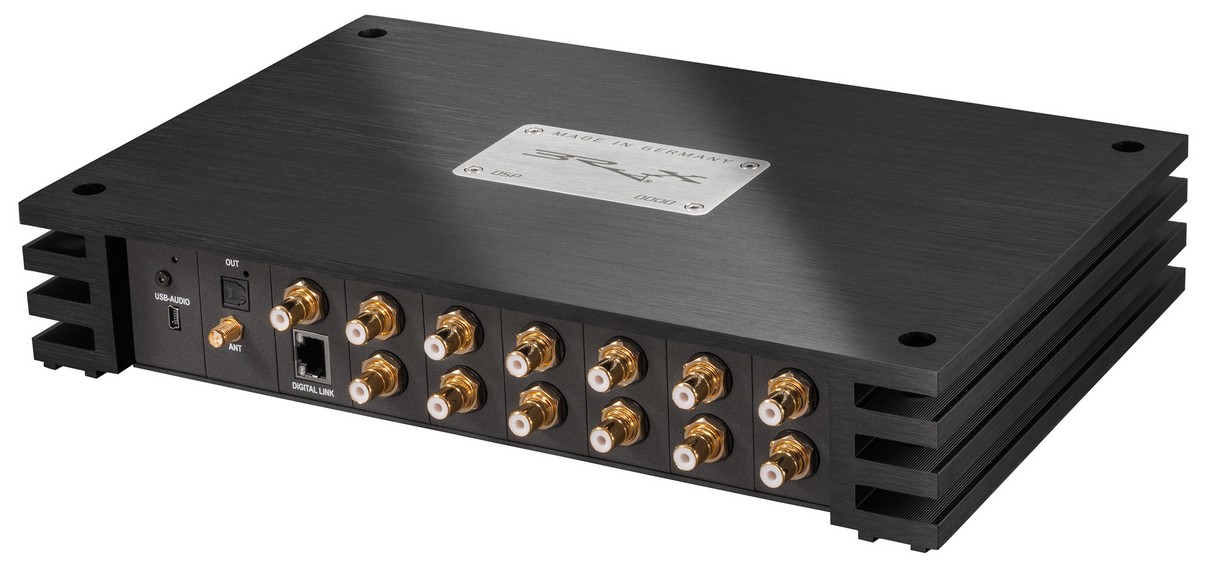

BRAX DSP – CORE Model
Sometimes, the impossible takes a bit longer – and precisely this level of dedication is reflected in the BRAX DSP. With the longest and most intensive development process ever in the history of Audiotec Fischer, the BRAX DSP is the company's most advanced digital signal processor. Being the first DSP to bear the famous BRAX logo, it impresses with its unparalleled sound quality and outstanding functionality, it elevates the performance standard to an unrivalled level while receiving universal recognition around the whole world.
When it comes to BRAX, you can definitely be sure about one thing: We didn't spare any effort to carry every single detail of this technological masterpiece to extremes: The "heart" consists of no less than three (3!) of the most advanced Sigma350 series fixed-point 64 Bit audio DSP's with the incredible processing power of 3.6 billion MAC operations per second. This allows to run the whole system on a native 192 kHz sampling rate, extending the audio frequency range to 80 kHz. Thanks to its modular architecture, the latest and best A/D and D/A converters, like current state-of-the-art converters from Asahi Kasei and ESS Technology, can be integrated at any time.
Enormous care has been taken for the design of the power supply which is the essential foundation for perfect sound quality. A host of fifty-five voltage regulators cleans and stabilizes all the supply voltages for every single stage separately. A high-performance 32 Bit CoProcessor (ACO) supervises every operation and assures fastest communication with the DSP PC-Tool software and the optional remote controls CONDUCTOR and DIRECTOR.
But besides all its technical merits, the BRAX DSP marks the beginning of a new era in terms of connectivity as well. Its unique modular concept allows to configure the inputs and outputs either as analog, digital or a mix of it. Thanks to this unmatched flexibility, the BRAX DSP makes it possible to integrate even the most complex system configurations – neither today nor in the future.
This masterpiece is completed by a mechanical concept which gives the impression of everlastingness at first glance. Again: the enormous expenditure – from the massive heatsink in BRAX typical straight-lined design to the cinch jacks milled from the solid – is discernible down to the most minute detail.
Features
- Three extraordinary powerful “fixed point” Sigma350 audio DSP's with 64 Bit resolution and a total of 3.6 billion MAC operations per second calculating power
- State-of-the-art Asahi Kasei "Velvet Sound" A/D and D/A converters with a native resolution of 32 Bit
- 192 kHz sample rate for ultra High-Res audio bandwidth up to 80 kHz
- Benchmark specifications for e.g. signal-to-noise ratio and total harmonic distortion, close to measuring limits
- Modular 8-channel in / 12-channel out concept with exchangeable stereo analog or digital input / output modules for covering all possible system configurations
- 4 stereo input modules with either analog RCA / Cinch and Highlevel or digital optical / coaxial SPDIF input
- Analog inputs with particularly wide control range for input sensitivity
- Highlevel inputs with ADEP.3 circuit to bypass radio diagnostic systems

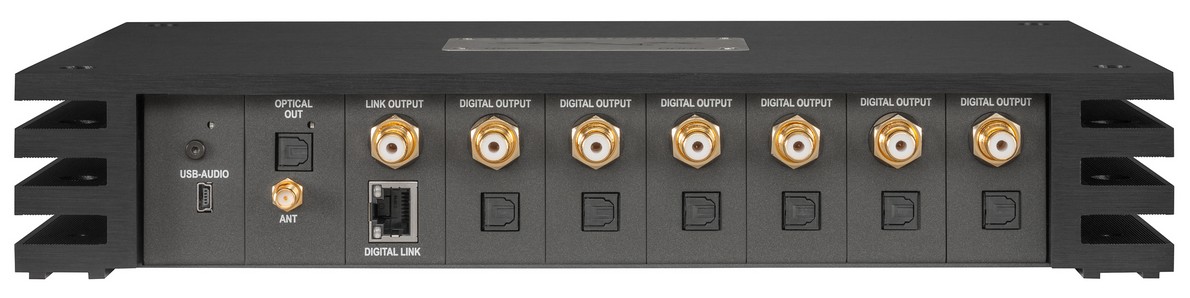

- 6 stereo output modules with either analog RCA / Cinch or digital optical / coaxial SPDIF outputs
- Output modules with switchable sampling rate of 48, 96 or 192 kHz
- Analog output modules with variable filter characteristics and switchable output voltage of 2, 4 or 8 Volts
- Muting of the analog output stages via relays with gold-plated contacts
- Additional integrated stereo SPDIF input (optical / coaxial)
- Double BRAX Extension Card slot (BEC) for optional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
- Incomparably complex power supply concept with a total of 55 voltage regulators and start-stop capability
- DiSAC (Digital Signal Analog Controlled) volume control in combination with BRAX MATRIX MX4 PRO amplifier
- DiSAC 2.0 with BRAX REVELATION RX2 PRO amplifier, provided it´s equipped with a digital input module
- ACO – Advanced 32 Bit CoProcessor platform for extended feature set:
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
- DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
- Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
- SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.
- VCP (Virtual Channel Processing) in 96 kHz operating mode allows even more flexible configuration for highly complex sound systems
- Solely made from the very best components with lowest tolerances, fitted in a rock-solid aluminum housing

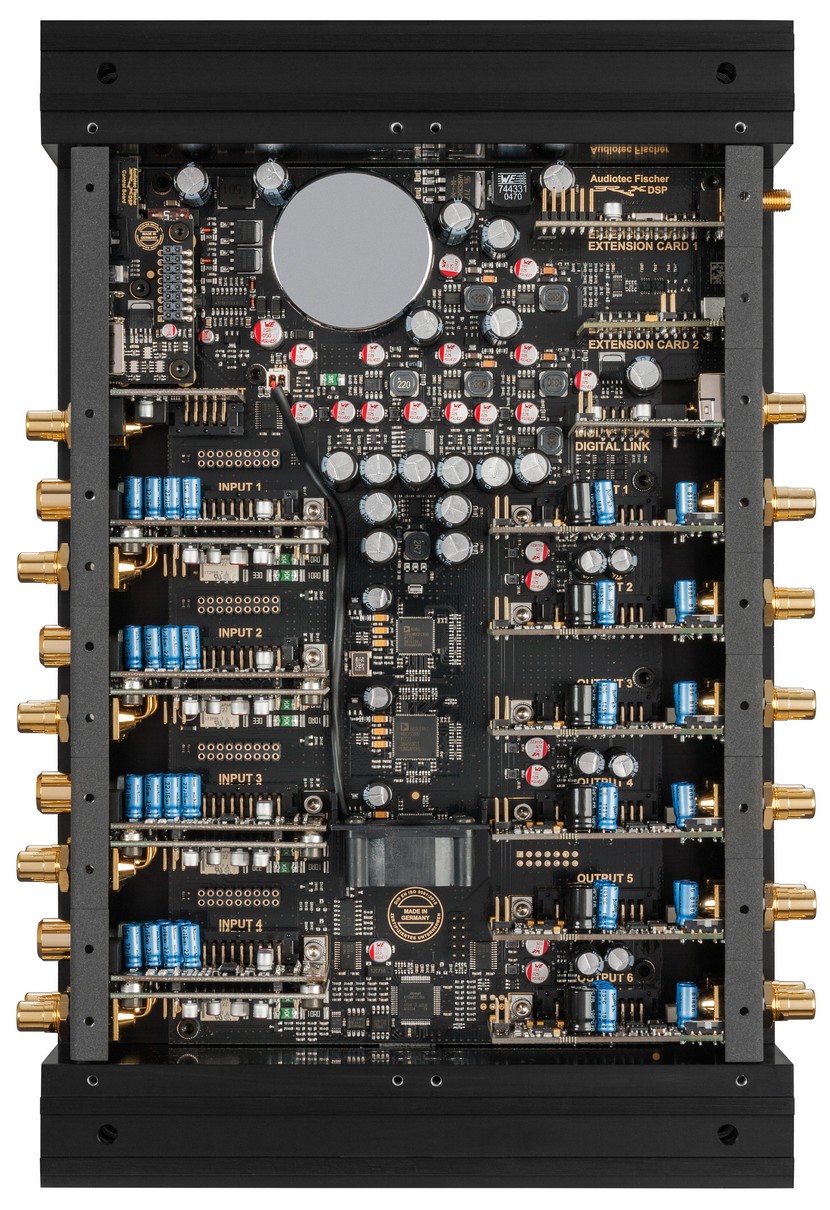

- Eight-fold layer main PC board for ultra-low impedance signal and power supply transmission
- Analog audio signal transmission solely on the in- and output modules
DSP features
TuneEQ
TuneEQ is an extremely flexible and particularly easy-to-use function for automated frequency response correction. A single measurement per audio channel or channel pair with a suitable measurement microphone (e.g. our MTK1) is sufficient for TuneEQ to independently and precisely adjust the equalizers to the desired reference curve. TuneEQ uses the full function set of the parametric equalizer including center frequency, Q-factor and gain adjustment. And since the highly complex arithmetic operations required for this run in the background, you also save a lot of time when optimizing your sound with TuneEQ.
RealCenter
The “RealCenter” feature is an algorithm, developed by Audiotec Fischer, that emphasizes the music information which is present in both the left and right front channel to create an unique center signal. In contrast to common procedures, in which only the channels are summed up, the intensity of the center signal is also dynamically controlled by the stereophonic informational content of the left and right channel.
Sounds complicated but this effect is astonishing: That means if solely the left or right channel delivers an audio signal, the center channel will not reproduce a signal. In the case of common algorithms, the volume level of the center channel is only reduced by 6 dB (= half volume level). Audiotec Fischer’s “RealCenter” allows a unique, broadened sound staging for both driver and co-driver at the same time! Therefore, the disadvantages of a conventional center channel, such as an intrusive, small sound stage, are things of the past.
Augmented Bass Processing
Audiotec Fischer’s proprietary “Augmented Bass Processing”, consisting of the two revolutionary sound features “Dynamic Bass Enhancement” and “SubXpander”, has been especially developed to dramatically improve the bass reproduction of subwoofers.
The “Dynamic Bass Enhancement” ingeniously combines maximum deep bass and highest sound pressure – regardless of the music style or the tone controls in the head unit. Depending on the input signal, the “Dynamic Bass Enhancement” gains the lower frequency range and varies the cut-off frequency of the subsonic filter. The result is a significantly more powerful and deeper bass response at low and medium volume levels without the risk of overloading the subwoofer neither mechanically nor electrically at high volume levels. It is simply fascinating which bass performance is suddenly possible.
If you want an even lower and “darker” bass reproduction, the “SubXpander” can be additionally activated. Therefore, subharmonic tones are added to the fundamental tones in the frequency range between 50 and 100 Hz.
Technical data
| Inputs | Up to 8 x RCA / Cinch + 8 x highlevel speaker input or up to 4 x stereo SPDIF in optical / coaxial 1 x Optical SPDIF (12 - 96 kHz) 1 x Coaxial SPDIF (12 - 192 kHz) 1 x Remote In 1 x Remote control input |
| Input sensitivity | RCA / Cinch 1 - 8 Volts Highlevel 3.5 - 30 Volts |
| Outputs | Up to 12 x RCA / Cinch or up to 6 x stereo SPDIF out optical / coaxial (48 / 96 / 192 kHz) 1 x Remote Out 1x SPDIF Link |
| Output voltage | 2 / 4 / 8 Volt RMS adjustable |
| Frequency response | 5 Hz - 80,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 3 x 295 MHz (3.6 Mrd. MAC operations/second) |
| Sampling rate | 192 kHz |
| DSP type | 3 x Audio signal processor |
| Signal converters |
Signal converter options A/D: Signal converter options D/A: |
| Signal-to-noise ratio digital input (A-weighted) | 122 dB |
| Signal-to-noise ratio analog input (A-weighted) | ESS converter: 130 dB AKM converter: 116 dB |
| Total harmonic distortion (THD+N) digital input | < -108 dB (0.0004 %) |
| Total harmonic distortion (THD+N) analog input | < -104 dB (0.0006 %) |
| IM distortion (IMD) digital input | < -98 dB (0.0013 %) |
| IM distortion (IMD) analog input | < -94 dB (0,002 %) |
| Crosstalk | ESS converter: < -110 dB (@1 kHz) AKM converter: < -110 dB (@1 kHz) |
| Operating voltage | 10.5 - 16 Volt (max. 5 sec. down to 6 Volts) |
| Current draw | 2400 mA |
| Max. remote output current | 500 mA |
| Operating temperature range | -40 °C to +70 °C |
| Additional features | Modular input / output concept, 2 x BEC Slot, ground lift switch, 32 Bit CoProcessor, control Input, ADEP.3 circuitry, Auto remote switch, DiSAC volume control in combination with BRAX MATRIX MX4 PRO, DiSAC 2.0 with BRAX REVELATION RX2 PRO (provided it´s equipped with a digital input module) |
| Dimensions (H x W x D) | 310 x 200 x 56 mm |
Scope of delivery
1 x High-end signal processor BRAX DSP CORE Model – black
1 x BRAX T-shirt
1 x USB cable
2 x Allen key
1 x Certificate

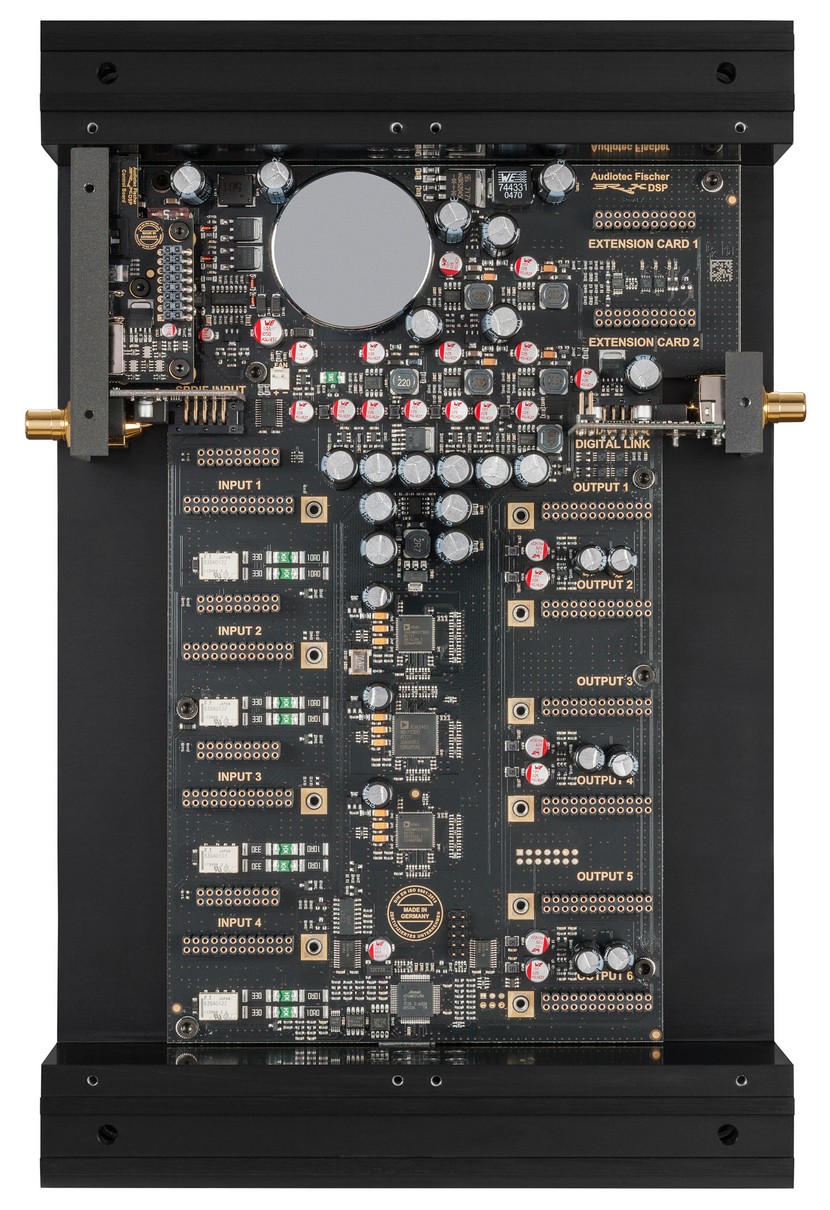

Note: The CORE Model includes a fully assembled DSP with a heatsink and blank side panels for each slot that is not configured with a module. Please note that to use the DSP, the CORE Model must be equipped with at least one output module.
