Περιγραφή

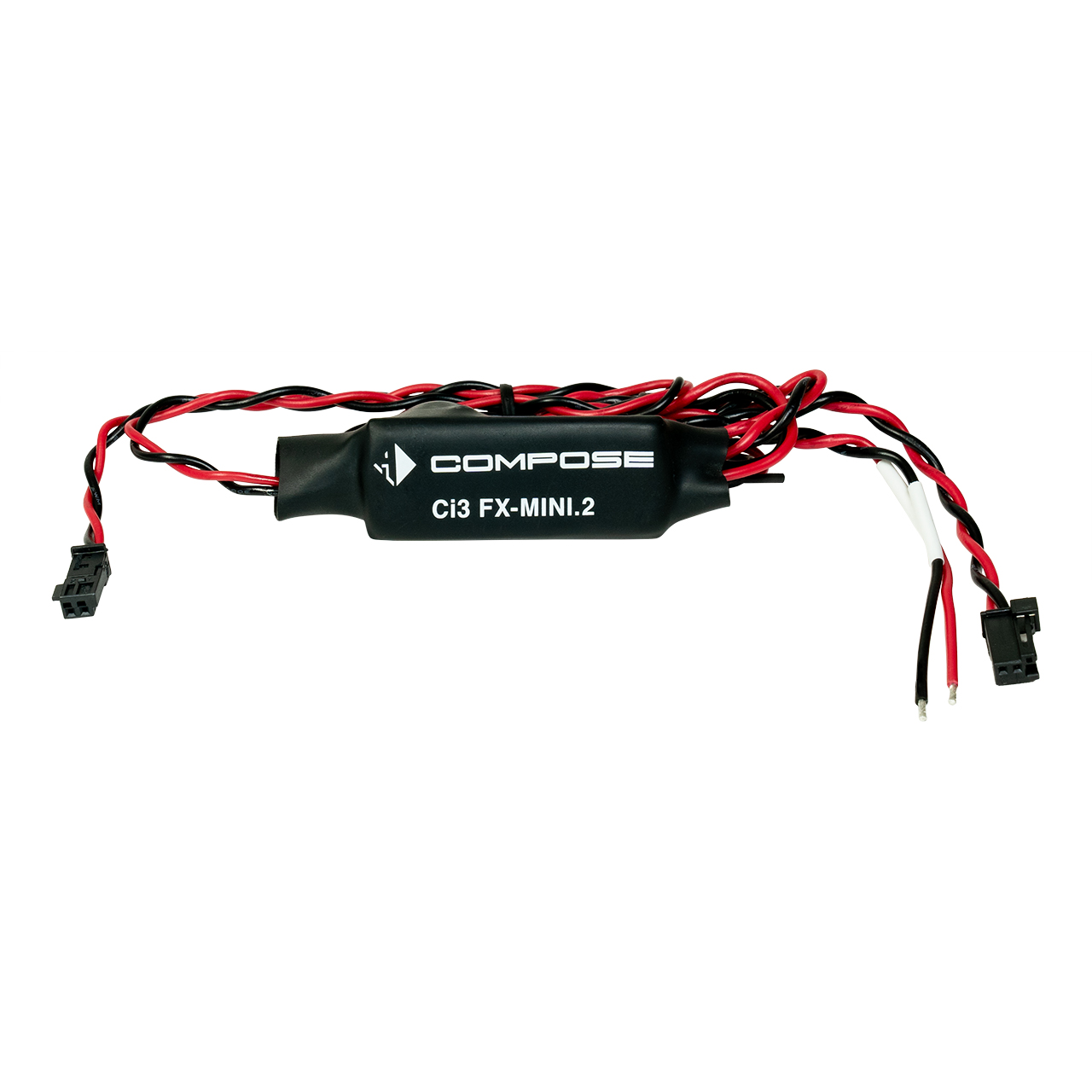

The inline crossover is designed for the ideal use with our HELIX COMPOSE i3 midrange Ci3 M100FM-S3 and Ci3 T20FM-TI tweeter, thus ensuring the COMPOSE-typical, professional integration into the vehicle. Thanks to its extremely compact dimensions, it can be seamlessly integrated into the vehicle even with minimal space available. It is equipped with a tweeter protection and plug & play connectors for speaker connection, allowing a safe and fool-proof connection. In addition, the tuning with a 12 dB slope for the tweeter ensures the best possible distribution of the frequency band and a harmonious sound image.
Features
- 2-way inline crossover for HELIX COMPOSE i3 midrange Ci3 M100FM-S3 & Hochtöner Ci3T20FM-TI
- Integrated tweeter protection
- 12 dB slope for tweeter

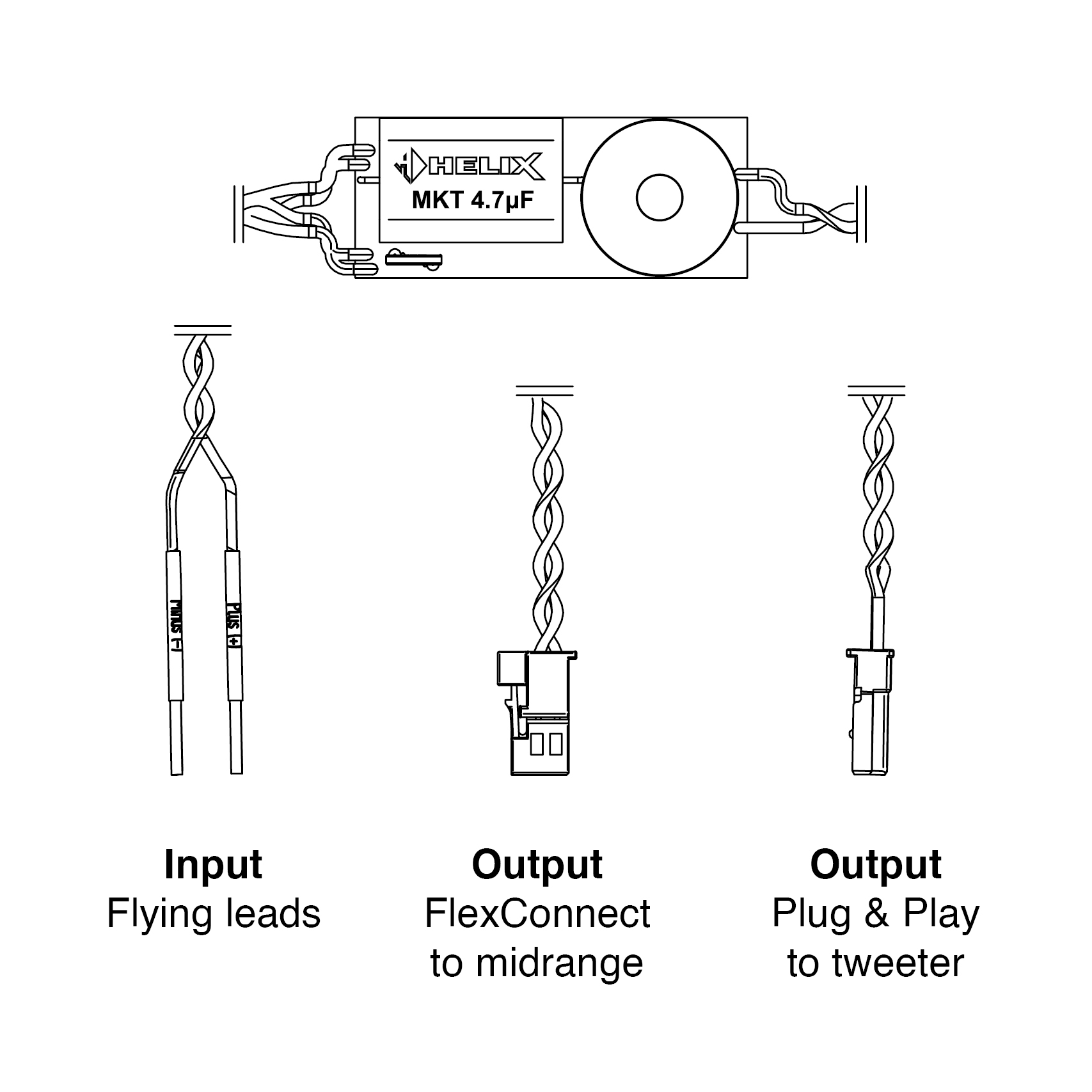

- Smart, automotive grade connectors for fail-safe and secure connection of the speakers (FlexConnect for midrange, plug & play for tweeter
- Connection cable of the crossover with flying leads for maximum flexible connection to the vehicle wiring harness
- Extremely compact dimensions for easy integration
Technical data
| Slope | 12 dB |
| Connections |
1 x Flying leads for signal input (15.75" / 400 mm cable length) |
Compatibility
Tweeter:
- Ci3 T20FM-TI
Midrange:
- Ci3 M100FM-S3
Scope of delivery
2 x Inline crossover
