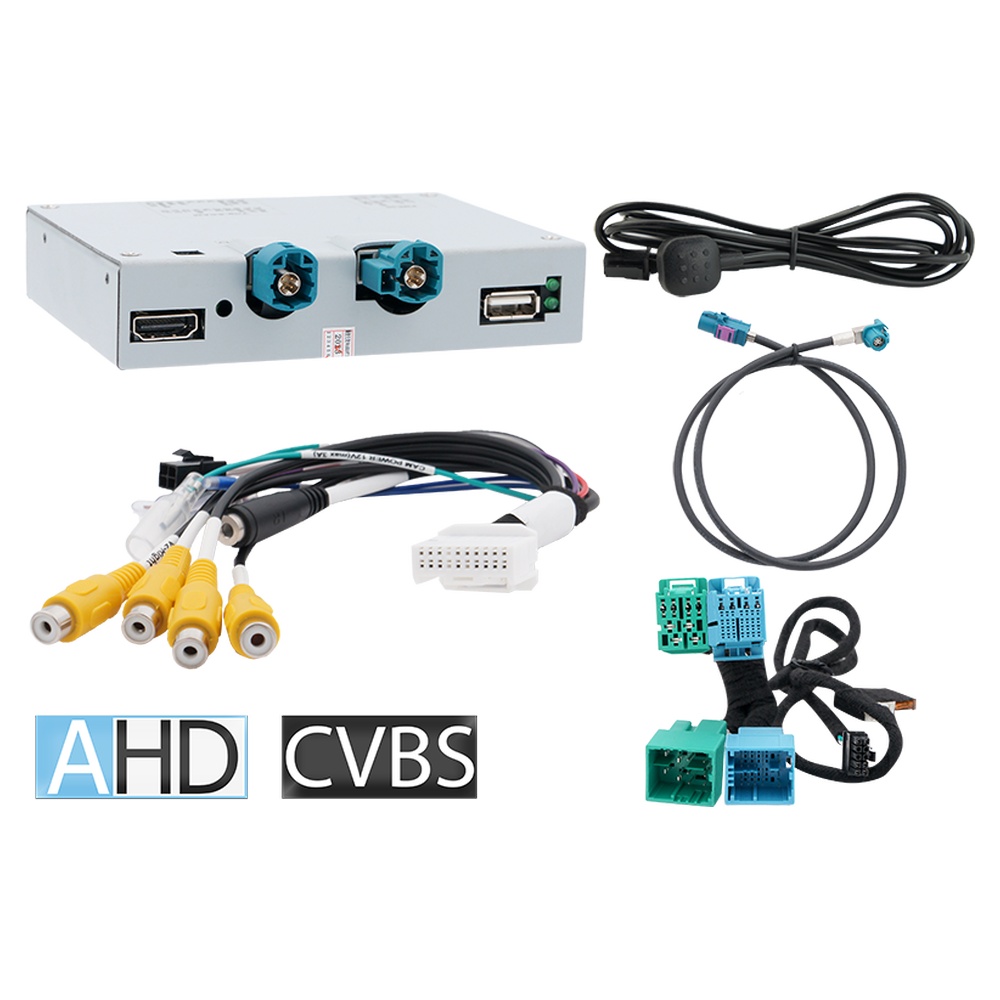

Fiat/Jeep/Alfa Romeo Video In & Camera Interface Uconnect5 10inch
×
Κάνε ΚΛΙΚ στην εικόνα για να την δεις σε μεγαλύτερο μέγεθος
Περιγραφή
Interface για κάμερα οπισθοπορείας και 2 εισόδους video για τα παρακάτω οχήματα
| Brand | Model | Navigation |
|---|---|---|
| Alfa Romeo | Tonale (965) από 05/2022 | Connect 10.25inch or Connect NAV 10.25inch - (R1 INT ER) with ultra-wide tablet monitor with separate head-unit |
| Citroen | Jumper2 (X295) 2024-2026 Relay3 (X295) 2024-2026 | Uconnect R1 EXT Harman head-unit with separate 10inch tablet monitor |
| Fiat | Ducato3 (series 8) από 2021 Tipo (356) 2021-2026 | Uconnect5 R1 EXT ER with 10inch tablet monitor with separate head-unit |
| 500, 500e 2021-> No CAN-bus support. External 12V analogue S-contact/ACC and R-gear signal required. | Uconnect5 R1 INT ER with 10.25inch ultra-wide tablet monitor with separate head-unit | |
| Jeep | Compass 2021-2026 | Uconnect5 R1 EXT ER with 10.1inch tablet monitor with separate head-un |
| Opel | Movano C 2021-> | Multimedia Navi Pro - Uconnect R1 EXT Harman head-unit with separate 10inch tablet monitor |
| Peugeot | Boxer2 (X295) 2024-> | Uconnect R1 EXT Harman head-unit with separate 10inch tablet monitor |
| Toyota | ProAce Max (T) 2024-> | ProTouch Multimedia-System - Uconnect R1 EXT Harman head-unit with separate 10inch tablet monitor |
Προσοχή: Μη Συμβατό για Jeep Compass από το 2021 με Uconnect5 8.4inch tablet monitor και all-in-one head unit.
Video-inserter for factory-infotainment systems
1 CVBS/AHD-input for rear-view camera
1 CVBS/AHD-input for front camera
2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
All inputs NTSC and PAL compatible
Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
1 HDMI-input for HD rear-view camera or additional HDMI-sources (e.g., IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)
Analogue audio output for HDMI source
Automatic switching to rear-view camera input while reverse gear is engaged
Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
Adjustable guide lines (fixed or movable) can be activated for rear-view camera (movable guide lines not available for all vehicles)
Picture free during the car ride (only for inserted video-sources)
Χαρακτηριστικά Προϊόντος
