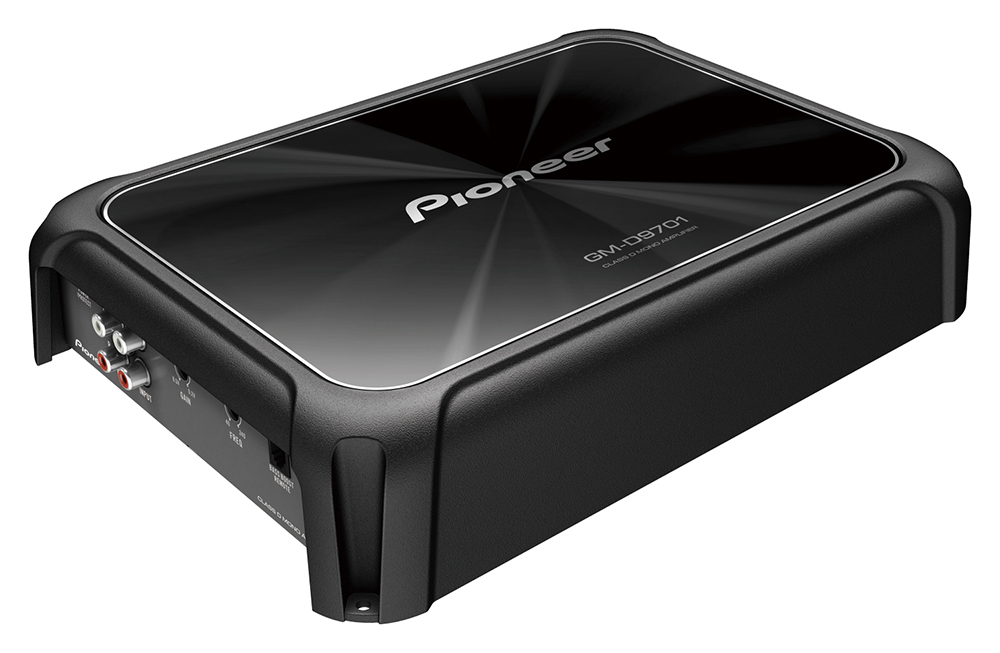

Μονοκάναλος Ενισχυτής Αυτοκινήτου Pioneer GM-D9701

Μονοκάναλος Ενισχυτής Αυτοκινήτου Pioneer GM-D9701

Big Power, Small Size

Pioneer’s extra-efficient Class-D amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Improved Circuit Design

To prevent circuit shutdown, Pioneer's digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. The stable and durable circuitry lessens the ristk of high input power to the unit so that it can achieve a 1 Ω connection. This design provides the flexibility to connect multiple subwoofers to a system.

Variable Low-Pass Filter

For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D9701 LPF is adjustable from 40 Hz to 240 Hz.

Turn Up the Bass

Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.

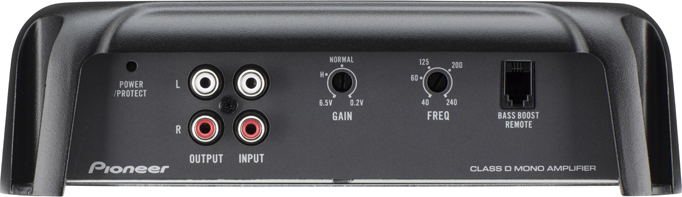

Γενικά:

•     RCA Inputs MONO
•     Amplifer Class CLASS-D
•     Speaker Level Inputs Yes
•     Crossover Type Variable LPF

Χαρακτηριστικά:

•     Continuous Power (RMS) Output at 1 Ohm 1200W RMS x 1
•     Continuous Power (RMS) Output at 2 Ohms 800W RMS x 1
•     Continuous Power (RMS) Output at 4 Ohms 500W RMS x 1
•     Continuous Power (RMS) Output - Bridged at 4 Ohms 10 Hz to 240 Hz
•     Frequency Response 10 Hz to 240 Hz
•     Total Harmonic Distortion (THD) < 0.5% (100 Hz)
•     Signal-to-Noise (SN) Ratio > 100 dB
•     Low-Pass Crossover Frequency 40 Hz
•     Low Pass Slope (dB/octave) -12dB
•     High-Pass Crossover Frequency 240 Hz
•     Bass Boost Frequency 50 Hz
•     Bass Boost Level 0 dB to 18 dB
•     Bass Boost Remote Yes
•     Hi-Volt Input Level Control 200 mV to 6.5 V
•     Terminal Type Block
•     Load Impedance Allowance (Ohms) 1 to 8
•     Protection Control System Yes
•     Dimensions 12-3/8" x 2-3/8" x 7-7/8"
