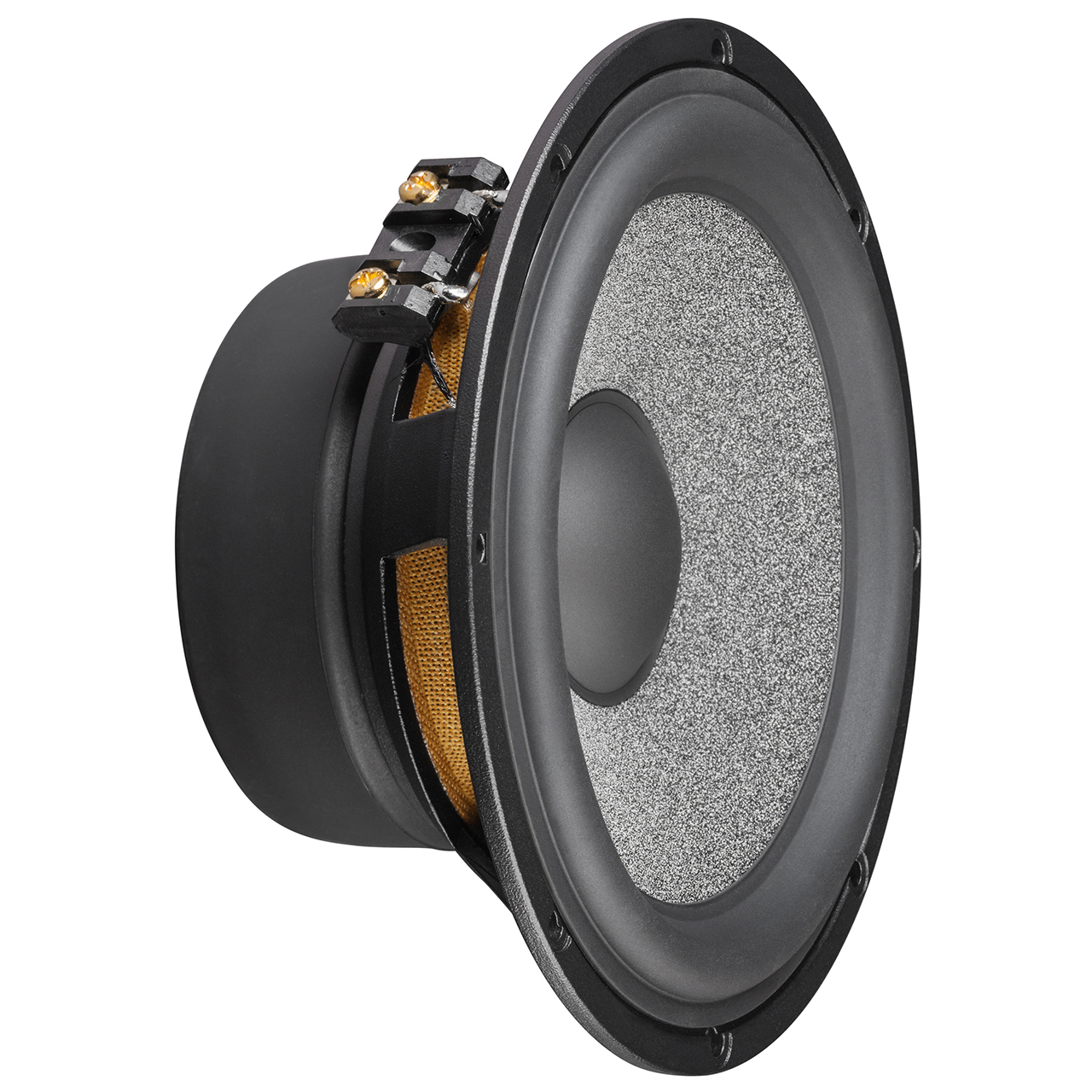

6.5" / 165 mm High-End Woofer BRAX GRAPHIC GL6 MK2

It all started with the vision of music lover and company founder Heinz Fischer to be the first to bring exceptional audio experience of legendary high-end hi-fi components into the car. Uncompromising in design, technology and sound. True to these fundamental principles, the focus in the development of our BRAX GRAPHIC loudspeaker series is on pure, unaltered music reproduction, consistently realized by the latest technologies and highest-quality materials – of course designed and made in Germany.

MicroSphere – the material for maximum acoustic precision

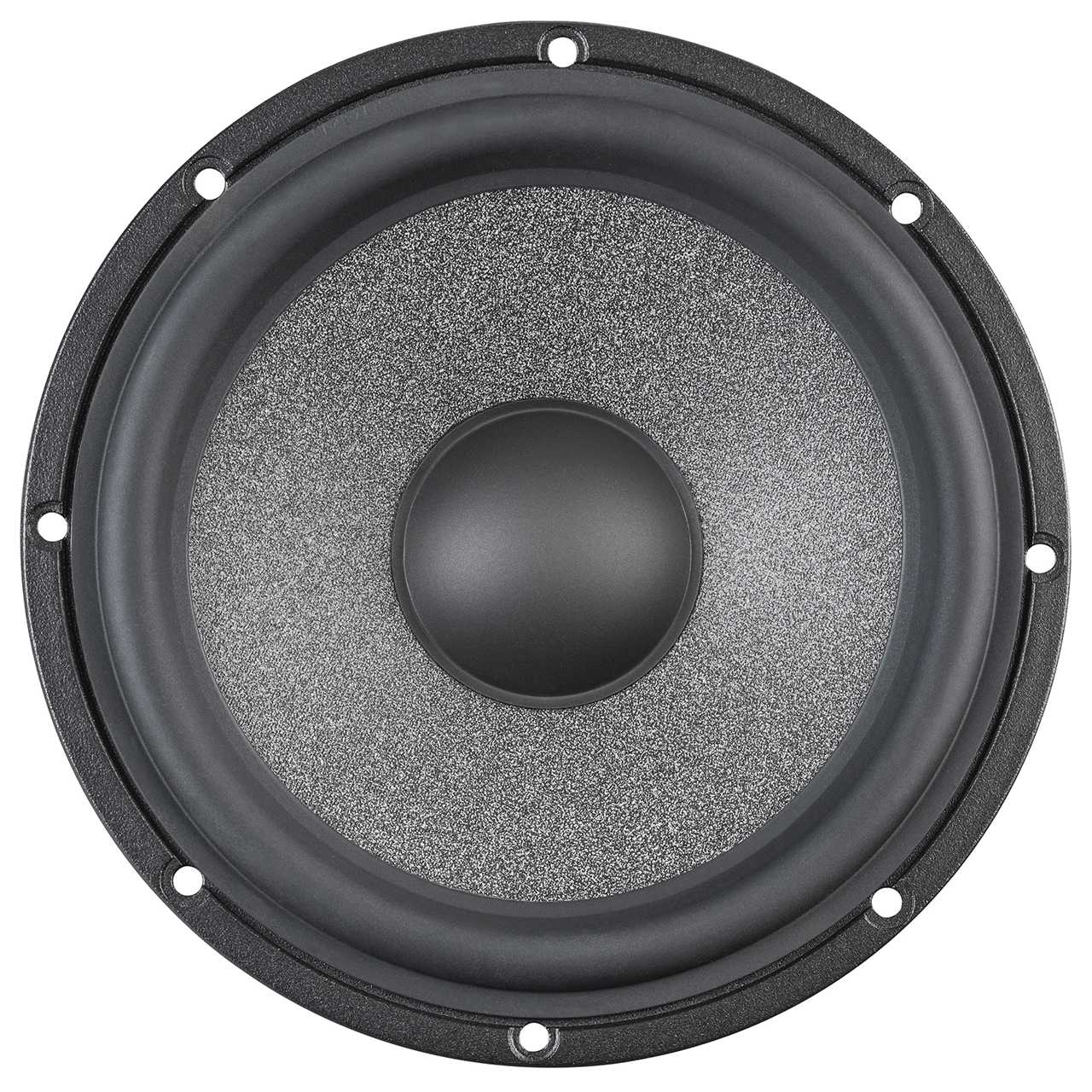

The unique "MicroSphere" coating of the 165 mm / 6.5" high-end GRAPHIC GL6 MK2 mid woofers ensures outstanding sonic performance. With this patented technology, ceramic micro hollow spheres with a diameter of only 75 µm are embedded in a polymer layer and applied to the cone. This special coating guarantees perfect inner damping without negatively affecting the diaphragm weight. Instead, the innovative treatment increases the stiffness of the hand-scooped cone and allows this exceptional speaker to perform even more dynamically and accentuated.

Perfection – redefined

BRAX would not live up to its claim if our striving for perfection did not result in constant improvements to details. The GL6 MK2 comes with a new dust cap made of particularly soft polyurethane that ensures an even more balanced frequency response in the midrange and thus maximum tonal neutrality.

Even the smallest detail counts

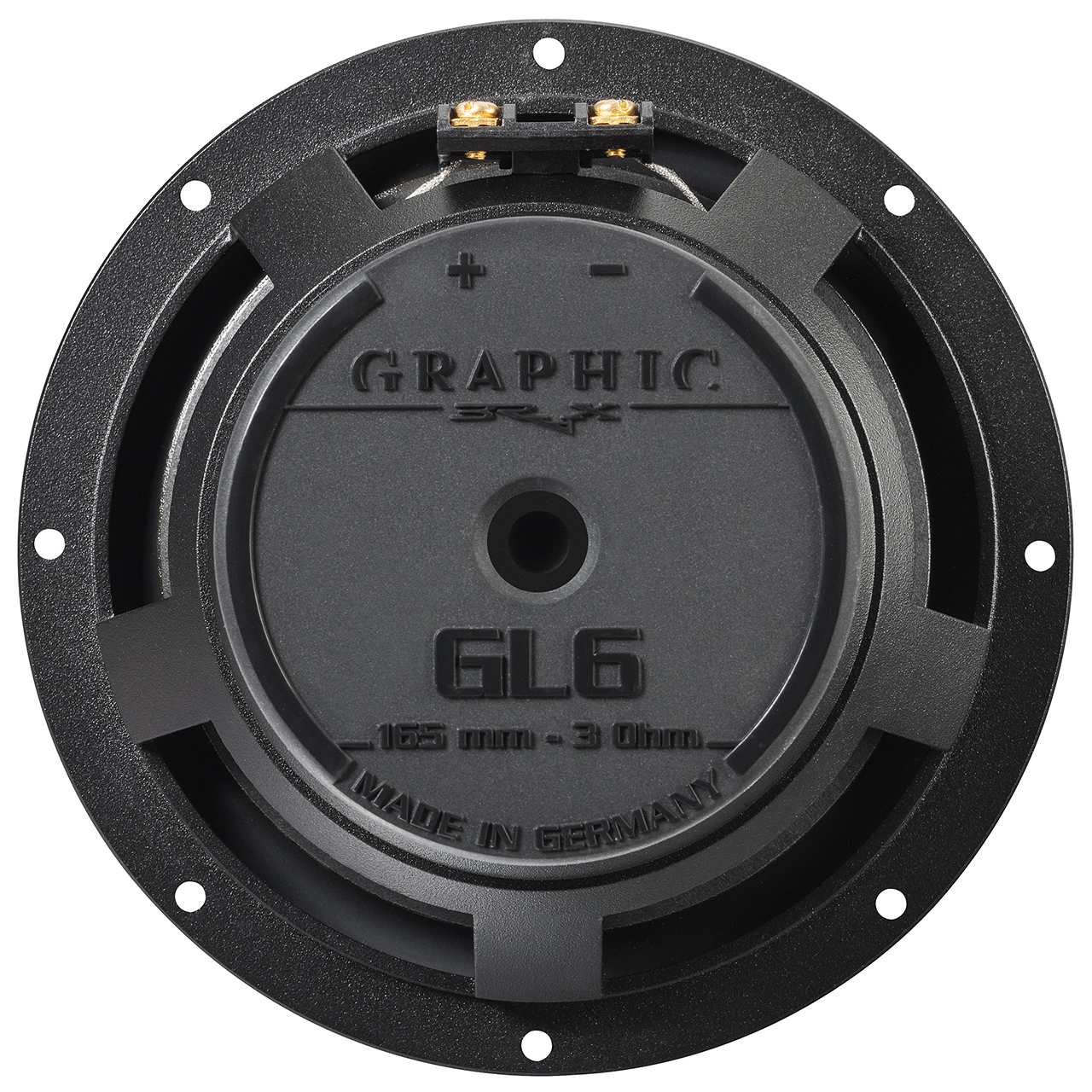

All components of the GL6 MK2 reflect the BRAX philosophy without anyexception. The extremely stable die-cast aluminum basket signals unshakeable solidity, whereas the highly precisely manufactured magnet system in conjunction with the 37 mm, 3 Ohms voice coil not only offers ideal Thiele/Small parameters for the best possible impulse response, but also warrants high efficiency. The specially shaped rubber surround ensures maximum linear diaphragm excursion, 24-carat gold-plated screw terminals minimise contact resistance. Last but not least, the large magnet ventilation opening allows best possible minimisation of compression effects and the robust cover with BRAX lettering provides reliable protection for the magnet.

Each pair of speakers is unique

As is typical for BRAX, each pair of speakers is given its own serial number and recorded in a service database. This high-end product – Made in Germany – is rounded off by the packaging in a fine wooden box, which once again underlines the philosophy of the BRAX brand.
