Compose i7 - Tweeter 20mm - Flexmount - silk dome with coupling volume
Ci7 T20FM-SC
×
Κάνε ΚΛΙΚ στην εικόνα για να την δεις σε μεγαλύτερο μέγεθος
Δες περισσότερα προϊόντα σε:
nicksrds
Άμεση εξυπηρέτηση, γρήγορη αποστολή προϊόντων , πλήρη ενημέρωση εξέλιξης της παραγγελίας και 24 άτοκες δόσεις σε πιστωτική κάρτα. Νομίζω ότι ανήκει στα top καταστήματα.
Eπιβεβαιωμένη αγορά από πελάτη
Γιώργος Τ
Μετά από τρεις παραγγελίες και συζητήσεις με το τηλεφωνικό κέντρο και μέσο viber με κύριο Νώντα χρειάστηκε να κάνω κάποιες αλλαγές προϊόντος προσπάθησε να με εξυπηρετήσει αφιέρωσε χρόνο άσχετα αν δεν είχα 100% το αποτέλεσμα που ήθελα εγώ τον ευχαριστώ για το χρόνο που αφιέρωσε και την εξυπηρέτηση άψογος! Προτείνω από συγκεκριμένα κατάστημα γιατί θα βρείτε λύση ακόμα και όταν δεν μπορείτε να βγάλετε άκρη..
Eπιβεβαιωμένη αγορά από πελάτη
Περιγραφή
Ηχεια

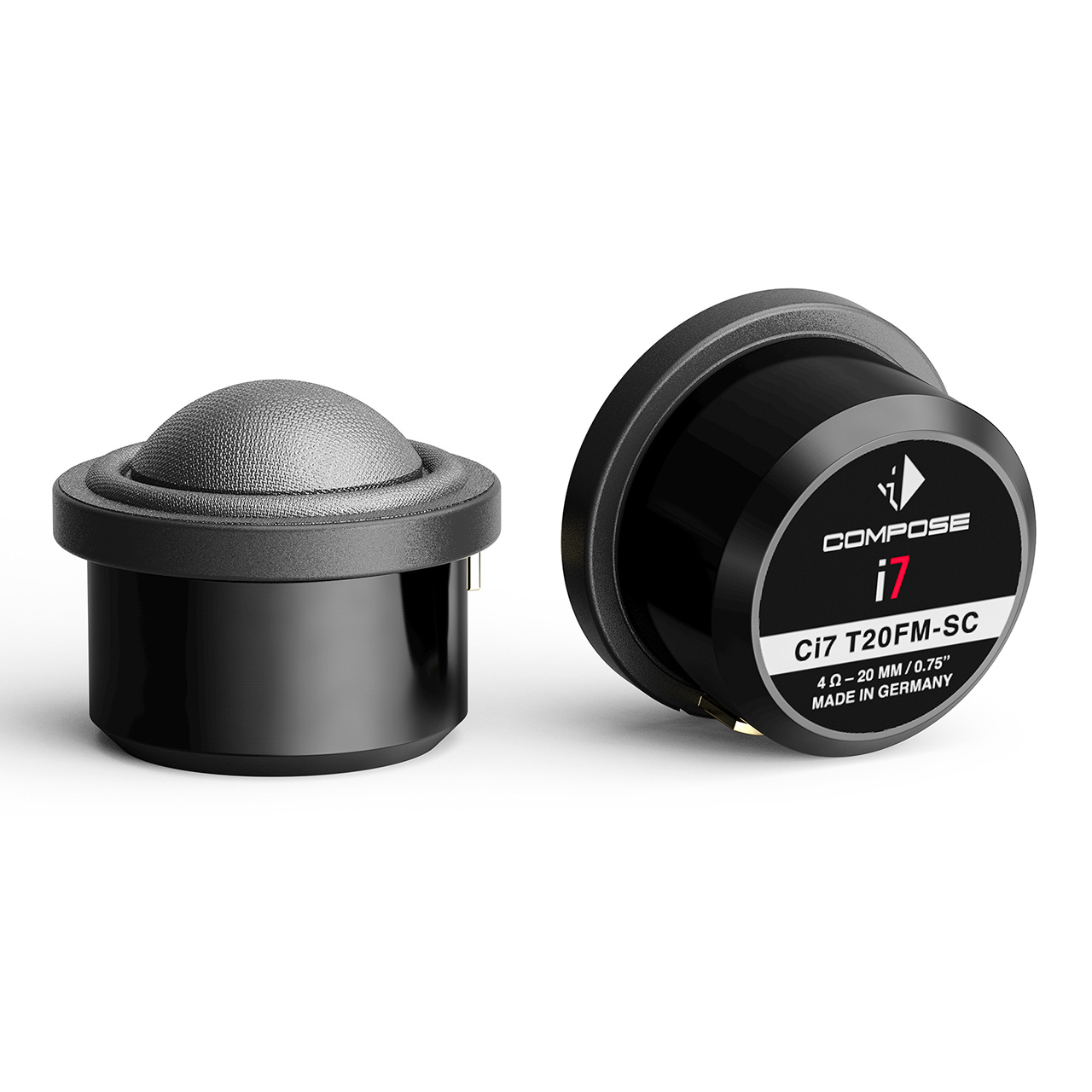

HELIX Ci7 T20FM-SC
HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE - universal speakers evolved.
i7 – High-end made in Germany
Our HELIX COMPOSE i7 series represents uncompromising high-end for an outstanding sound experience in the automobile. With obvious influence of the high-end sister brand BRAX, the i7 speaker series is completely made in Germany and optimized for uncompromising music enjoyment. All speaker impedances are perfectly matched for the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance at any time. In addition, HELIX COMPOSE introduces four new mechanical technologies that offer unbeatable practical benefits.
Brilliant treble response
Our i7 tweeter is equipped with a fine-meshed silk dome with visco-elastic Acronal coating on both sides, guaranteeing a brilliant and smooth treble response. In addition, the integration of pure lamb’s wool and dampened coupling volume enables a very low resonance frequency and allows a deep acoustic coupling.
FlexMount20 – Universal meets car-specific
FlexMount is a mounting system based on specially developed adapter rings, allowing the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. Thus, the universal tweeter effortlessly becomes a vehicle-specific tweeter, that can be easily installed in the original installation position of the vehicle in an acoustically optimized way with the matching FlexMount20 adapter ring.
Features
- Super-wide dispersion 0.75” / 20 mm high-end silk dome tweeter with coupling volume for lowest possible resonance frequency
- Exceptionally lightweight and fine-meshed silk dome ensures brilliant and smooth treble response
- High efficient neodymium magnet for high magnetic flux linearity
- Integrated, dampened coupling volume allows a low crossover frequency thanks to its low resonance frequency
- Sturdy Aluminum housing turned from solid
- Compact design and various mounting options for various installation demands
- Mounting pods for flush mount and angle mount included in delivery
- Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
- Made in Germany
Technical data
| Impedance | Z | 4 Ω |
| DC resistance | Re | 3.4 Ω |
| Frequency response | 1.500 Hz - 30.000 Hz | |
| Resonance frequency | Fs | 950 Hz |
| Sensitivity | SPL | 93.0 dB @ 2.83V / 1m 90.0 dB @ 1W / 1m |
| Voice coil diameter | Ø | 20 mm |
| Cone material | Silk dome with coupling volume | |
| Outer diameter | 32 mm / 1.26" | |
| Installation diameter | 27.2 mm / 1.07" | |
| Installation depth | 19 mm / 0.75" | |
| Recommended crossover frequencies for the highpass | ||
| Slope | Minimum crossover frequency | |
| 6 dB/Octave | > 4.000 Hz | |
| 12 dB/Octave | > 3.000 Hz | |
| 24 dB/Octave | > 2.500 Hz | |
Compatibility
- FlexMount20
Scope of delivery
2 x Ci7 T20FM-SC
2 x Tweeter flush mount
2 x Tweeter pod
2 x Extension cable
2 x Mounting material
Χαρακτηριστικά Προϊόντος
Best Seller :
Τύπος :
Tweeter
Διάσταση :
1.18" (30mm)
High Level Input :
