Περιγραφή

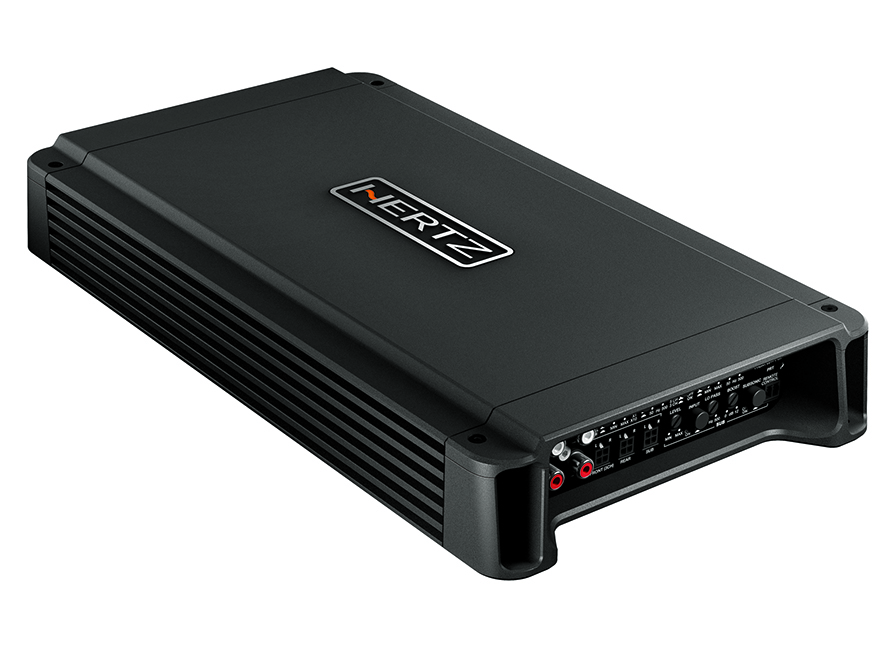

Πεντακάναλος Ενισχυτής Αυτοκινήτου Hertz HCP 5D
Χαρακτηριστικά:
Channel mode | 5 - 3 |
Output Power (RMS) @ 14.4 VDC |
5 Ch 65 W x 4 + 200 W x 1 (4Ω) 5 Ch 105 W x 4 + 330 W x 1 (2Ω) 3 Ch 210 W x 2 (4Ω) + 200 W x 1 (4Ω) 3 Ch 210 W x 2 (4 Ω) + 330 W x 1 (2 Ω) |
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic |
Yes A Ch: 50 ÷ 5 kHz @ 12 dB/Oct. B Ch: 50 ÷ 500 Hz @ 12 dB/Oct. C Ch: 50 ÷ 500 Hz @ 24 dB/Oct. A Ch: 50 ÷ 500 Hz(Hi) @ 12 dB/Oct. B Ch: 50 ÷ 5 kHz(Lo) @ 12 dB/Oct. 25 Hz @ 24 dB/Oct. |
Distortion - THD (100Hz @ 4Ω) |
0.02% |
S/N Ratio (A weighted @ 1V) |
100 |
Damping factor (100Hz @ 4Ω) |
A & B Ch 100 C Ch 250 |
Size W x D x H mm (in.) |
345 x 190 x 50 (13.58 x 7.48 x 1.97) |
Technologies
-
- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels. -
COMPLETED FILTER SECTION
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source. -
HCP ELECTRONICS
Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105°C capacitors, selected to ensure high efficiency and current capability. -
ART
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.
